Description

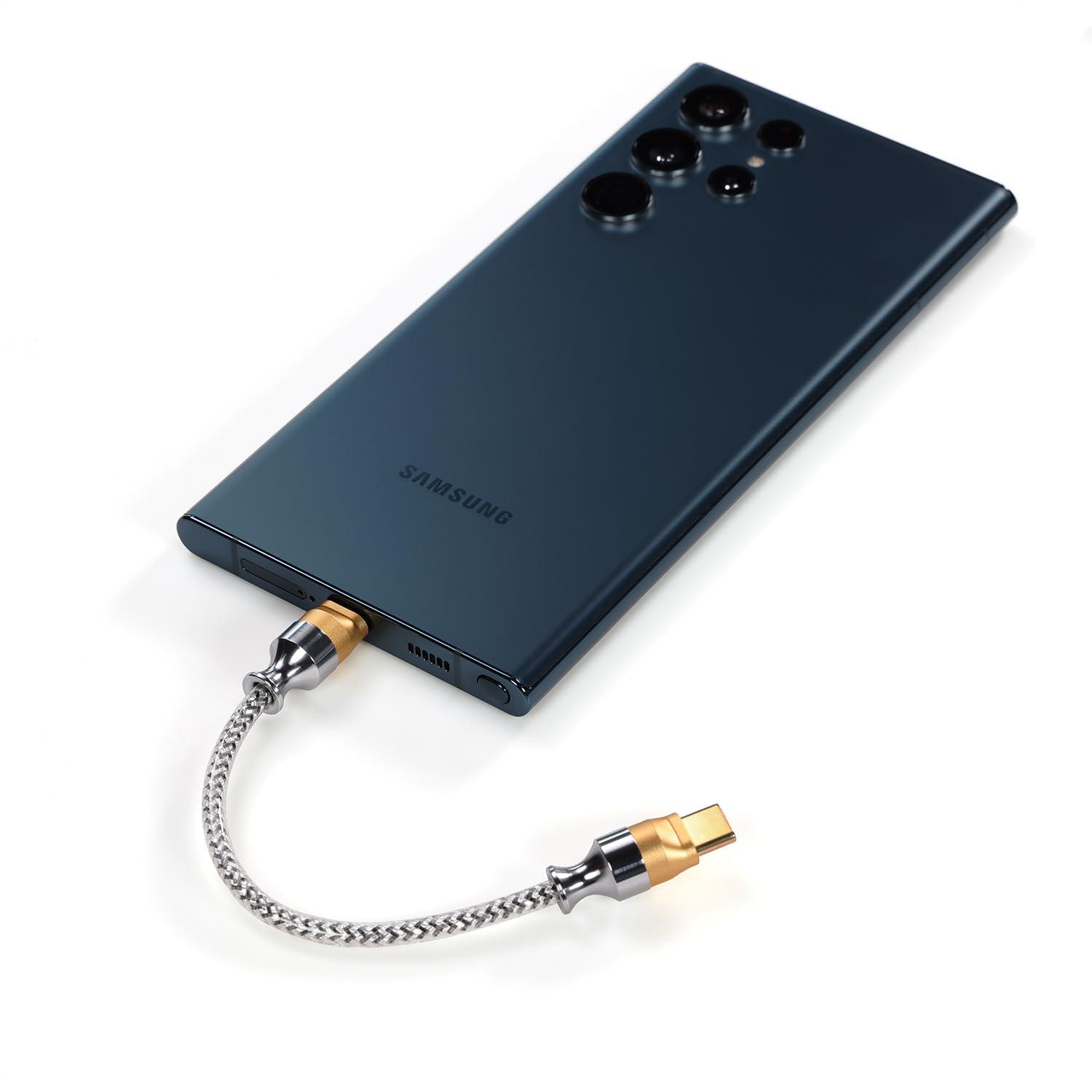

𝐋𝐨𝐰-𝐏𝐫𝐨𝐟𝐢𝐥𝐞 𝐚𝐧𝐝 𝐄𝐥𝐞𝐠𝐚𝐧𝐭 𝐎𝐓𝐆 𝐇𝐢𝐅𝐢 𝐀𝐮𝐝𝐢𝐨𝐩𝐡𝐢𝐥𝐞 𝐔𝐒𝐁 𝐂𝐚𝐛𝐥𝐞: As one of DDHiFi's popular products, the TC07S leaves a good impression on people both in terms of material and appearance. Compared to traditional OTG, TC07S has a more elegant appearance design. The silver body and metal connectors provide users with a very comfortable experience. In terms of technology, it also uses the latest Nyx 2.0. If you are a HiFi enthusiast, this product is definitely worth trying out.
𝐍𝐲𝐱 𝟐.𝟎 𝐒𝐢𝐥𝐯𝐞𝐫 𝐒𝐡𝐢𝐞𝐥𝐝𝐞𝐝 𝐃𝐚𝐭𝐚 𝐂𝐚𝐛𝐥𝐞: The Nyx 07 series uses the 2nd gen of silver shielded wire, which arranges the power supply and data wires at equal intervals. It also uses imported insulation material, and adjusted the density of shielding net, black and white spacing and outer layer insulationaccording to the impedance matching. Compared to the 1st gen, the 2nd gen silver shielded wire is smaller and more compact.
𝐔𝐬𝐞𝐫 𝐄𝐱𝐩𝐞𝐫𝐢𝐞𝐧𝐜𝐞 𝐔𝐩𝐠𝐫𝐚𝐝𝐞 – 𝐄𝐚𝐬𝐲 𝐭𝐨 𝐏𝐥𝐮𝐠 𝐚𝐧𝐝 𝐔𝐧𝐩𝐥𝐮𝐠: The narrow-waisted and wide-mouthed image is a further extension of ddHiFi 2023 design language. The advantage of this unique design is to make the holding more firm when plugging in and pulling out. Moreover, the arched-edge can also reduced wire creases and the bi-color front and rear cavity structure contributes to all-round metal shielding of the plug.
𝐃𝐮𝐚𝐥 𝐁𝐢-𝐝𝐢𝐫𝐞𝐜𝐭𝐢𝐨𝐧𝐚𝐥 𝐎𝐓𝐆 𝐏𝐥𝐮𝐠𝐬: As one of the most commonly used interfaces today, Type-C is widely known for its versatility. With two Type-C ports, it will be more convenient for users. Its recommended to use with protable audio decoding debices, such as dongle, USB DAC, etc.
Package Dimensions : 3.43 x 3.35 x 1.14 inches; 1.76 ounces
Item model number : DDHiFi TC07S
Date First Available : September 18, 2024
Manufacturer : Linsoul
Technical Details
Cable Structure: Power & Signal with Shieding
Inner Insulation: NUC High Precision Chemical Foam PE (Made in Japan)
Outer Dimensions: High Transparency SoftFlex PVC (Made in USA)
(Data Part) Core Thickness: 27AWG*2
(Data Part) Core Material: High Purity Litz Type2 4N Solid Core Silver (Φ0.08mm*19*2)
(Power Part) Core Thickness: 22.9AWG*2
(Power Part) Core Material: High Purity Litz Type2 Oxygen-Free Copper (Φ0.05mm*19*7*2)
Shielding Material: Litz Silver Plated over LCOFC
Cable Diameter: Φ4.0mm
Weight/Length: 10g/10cm 20g/50cm
Plug: USB-C OTG
Inside the Box:
1 x DDHiFi TC07S
User Manual
